Reordering Cards Using Clicks

Sometimes your data needs to be explicitly ordered rather than sorted by an intrinsic property like a name, salary, or hire date. In these cases we introduce an additional number column like SORT_SEQUENCE into the data model and sort on that manually-assigned position number. For a volunteer project I’m working on, I needed the ability to explicitly order the speakers at a conference, and easily adjust it as the organizer moves speakers around in the lineup. Before implementing the feature in my actual application, I built a simpler example based on employee names first to get the basic idea working. This article explains how I used a new feature of APEX 22.1 called Declarative Action URLs along with a dynamic action custom event to let users easily adjust the explicit ordering by clicking on a source card and a target card in a cards region.

Sorting Cards by Sequence in Related Table

To more closely mimic the data model of my actual conference management application, I have a simple employee table EBA_DEMO_REORDER_EMP with just an ID and NAME column and a separate table called EBA_DEMO_ORDER_EMP_LINEUP that contains an EMP_ID column referencing the ID primary key of the main table, along with the SORT_SEQUENCE number column. Out of a possibly larger set of employee names, a certain set get introduced into the “lineup” and then their explicit ordering is established as part of that lineup.

I started by building a cards region based on the following query, that joins the two tables and orders by the SORT_SEQUENCE column in the employee lineup table. I configured card title to use the NAME column and the badge to use the CARD_NUMBER.

       row_number() over (order by lu.sort_sequence nulls last,
       as card_number
from eba_demo_reorder_emp_lineup lu
left join eba_demo_reorder_emp e on = lu.emp_id
order by lu.sort_sequence nulls last, e.created

This quickly produced the basic card layout for the lineup of employee names.

Cards region showing the explicitly ordered lineup of employee names

Getting the Reordering Working

The lineup in my actual application can include hundreds of names, so I decided to let the user click on the card of the employee that needed to move, then click on the card of the place they’d like to move that employee. Using these two clicks, the end-user identifies first a “source” employee and then chooses a “target” employee position.

Inspired by the “source” and “target” naming, I created two hidden page items, P1_EMP_ID_TO_MOVE and P1_EMP_TARGET_POSITION, each with its Maintain Session State property set to Per Request (Memory Only). My strategy was to populate the first page item with the employee ID value of the initial click, and set the value of the second page item with the ID of the second click.

I wrote the PL/SQL package procedure to accept the source and target employee ids and perform the automatic reassignment of the SORT_SEQUENCE values of the affected rows:

create or replace package eba_demo_reorder is
   procedure move_source_to_target(p_emp_source_id number,
                                   p_emp_target_id number);

With this backend business logic in place, the two remaining tasks were:

  1. Handle the card click to assign the hidden page item values, and
  2. Invoke the above procedure once both source and target were defined, refresh the cards region, and clear out the hidden page items again.

I chose to tackle the second task first using a Dynamic Action custom event to maximize the amount of APEX’s declarative functionality I could take advantage of.

Using a Custom Event to Maximize Low-Code

Assuming the two hidden page items have the source and target employee ids populated, executing the server-side PL/SQL code, refreshing the cards region, and clearing out the hidden page items are all actions I can easily accomplish using dynamic action steps in response to a custom event. As shown below, I created a dynamic action event handler for a custom event with event name move-source-to-target-da. The Selection Type is jQuery Selector and I used the page’sbody as the jQuery Selector to be the anchor element for the event listener. I chose the page body at the recommendation of my colleagues John and Stefan who reminded me that refreshing the cards region would remove any event listeners on the cards themselves. The body targets the event listener on a element of the page that contains the cards region, but which is not itself getting refreshed.

Custom dynamic action event anchored to the page body.

The dynamic action steps include an Execute Server-side Code step to run this block of code to perform the reordering, making sure to include both P1_EMP_ID_TO_MOVE and P1_EMP_TARGET_POSITION in the page Items to Submit list:

   p_emp_source_id => :P1_EMP_ID_TO_MOVE,
   p_emp_target_id => :P1_EMP_TARGET_POSITION);

That is followed by a Refresh step to refresh the cards region on the page, and finally a Clear step to clear the values of the two hidden page items.

Wiring a Full Card Click to a Named Action

To tackle the remaining task of handling the click on the card, I added a card action and set the action Type to be Full Card. Following a suggestion from my colleague John, I used the new Declarative URL action invocation syntax he describes more in depth in his blog article Exploring new APIs in APEX 22.1. To put it to use, for the link type I chose Redirect to URL and provided a special URL syntax that invokes a named action, passing along one or more parameters in the process:


A URL of this syntax lets a click on my card invoke an action named move-source-to-target, passing along a parameter named id whose value is provided by the ID column of the current employee card.

Defining the named action at the moment requires a bit of JavaScript code. I added the following to my page’s Execute when Page Loads code block. If the P1_EMP_ID_TO_MOVE item is blank, it sets its value to the value of the id argument passed in. If P1_EMP_ID_TO_MOVE is set but P1_EMP_TARGET_POSITION is blank, then it sets the target and triggers the custom event named move-source-to-target-da that we configured above to perform the server-side PL/SQL call, refresh the cards region, and clear out the two hidden page items again.

   name: "move-source-to-target",
   action: function( event, element, args)
              /* If both are blank, set emp to move */
              if (apex.items.P1_EMP_ID_TO_MOVE.value      === '' &&
                  apex.items.P1_EMP_TARGET_POSITION.value === '') {
                 apex.items.P1_EMP_ID_TO_MOVE.value =;
              // If emp to move is set and target blank, set target
              // and trigger the custom event to complete the job
              // using declarative DA action steps to invoke the
              // server-side PL/SQL package procedure to move the
              // source emp to the slot where the target is.
              else if (apex.items.P1_EMP_ID_TO_MOVE.value      !== '' &&
                       apex.items.P1_EMP_TARGET_POSITION.value === '') {
                 apex.items.P1_EMP_TARGET_POSITION.value =;
                 // Trigger custom event to perform the server-side call
] );

My colleague Stefan gave me the great idea to use a custom event for this and to trigger it programmatically from the named action code. This allowed me to benefit from the simple action URL-wiring syntax as well as from the simplicity of using declarative dynamic action steps to perform the rest of the functionality.

The result is the click-click card reordering you see in this short video:

Example app for reordering cards with two clicks

If you’d like to try out the working example, download the app from here.

Upgrading Dynamic Sort to 22.1 Order By Page Item


Your end users appreciate seeing your application data in the order that best suits the task at hand. While some region types like Interactive Report offer end-user sorting as a native capability, other popular types like Cards lacked this feature. While it was definitely possible before APEX 22.1 to create Cards regions with user-controlled sorting, the new Order By Page Item feature in APEX 22.1 now makes it incredibly easy to implement. This article explores upgrading an existing dynamic sorting cards region to the new 22.1 Order By Page Item to improve the clarity and maintainability of your application.

Understanding the Existing Implementation

We’ll look at upgrading an existing APEX 21.2 example app with a single Cards page showing a list of friends (Download). The region’s select list page item allows end users to sort the friends list by name, age, or time you’ve known the person.

APEX 21.2 Friends app cards page with dynamic sorting

The page contains a P1_SORT_ORDER select list item with a static list of values showing the end-user the different available sorting orders, with a corresponding code value. The default value for this page item is set to the value NAME so the default sorting order will be alphabetical by friend’s name. The page item uses the Maintain Session State setting of Per User (Disk), so the user’s preferred sort order is remembered automatically across sessions:

Static list of values behind the P1_SORT_ORDER select list

The cards region’s data source is a Function Body returning a SQL Query. It returns a SQL query with an ORDER BY clause determined using a CASE statement that depends on the value of the :P1_SORT_ORDER page item as shown below. Note that the NVL() function is used here to ensure that the APEX builder can successfully parse the function body’s resulting SQL query at design time (where the value of the :P1_SORT_ORDER bind variable will be null).

return  q'[  select id,
                   to_char(birthday,'Mon fmdd') born_on,
                   trunc((sysdate - birthday)/365) age,
                   apex_util.get_since(met_on) met_them
              from friends
              order by
        case NVL(:P1_SORT_ORDER,'NAME')
            when 'NAME'               then 'name     asc'
            when 'AGE_OLDEST_FIRST'   then 'birthday asc'
            when 'AGE_YOUNGEST_FIRST' then 'birthday desc'
            when 'KNOWN_LONGEST'      then 'met_on   asc'
            when 'KNOWN_SHORTEST'     then 'met_on   desc'

Notice the order by clauses use a combination of ascending and descending sorting clauses. Finally, the P1_SORT_ORDER page item is configured with a Page Action on Selection property set to Submit Page, so the page re-renders to reflect the new sorting order. This also has the side-effect of sending the new value of the P1_SORT_ORDER item to the server so it can be saved into per-user session state by the APEX engine.

Setting the Order By Page Item

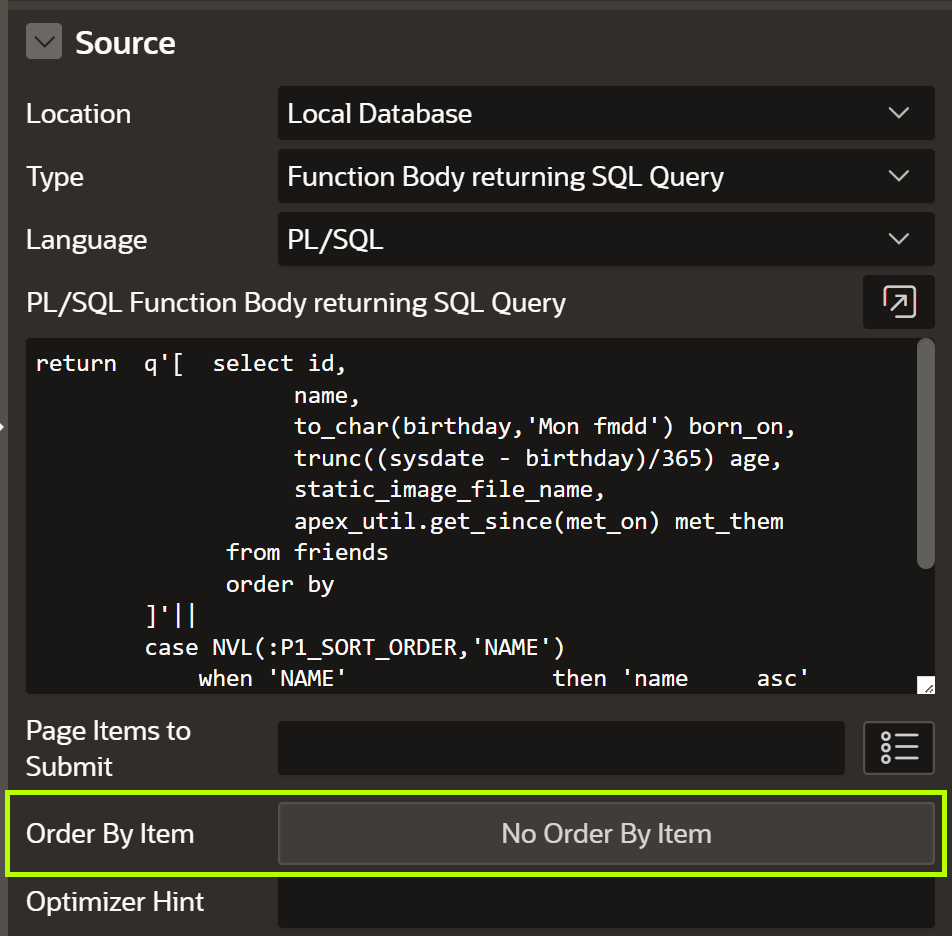

After importing the 21.2 Friends starting app into an APEX 22.1 workspace, editing the page, and selecting the Friends cards region in the Page Designer, we see it currently has No Order By Item.

Clicking on the No Order By Item button opens the Order By Item dialog where we can choose the existing P1_SORT_ORDER item in the page as the Order By Item for this region. After doing this, the dialog helpfully updates automatically to reflect the display and return values of the existing list, reminding us of which sorting option key values we need to provide ORDER BY clauses for:

Order By Item dialog after setting Order By Item name to existing P1_SORT_ORDER select list

We proceed to fill in the Clause field for each entry, using the ORDER BY clause fragments currently returned by the CASE statement in the Function Body Returning SQL Query code. After completing this task, the dialog will look like what you see below:

Order By Item dialog with ORDER BY clauses filled in based on existing CASE statement fragments

After clicking OK, the Order By Item reflects the name of the order by item and indicates how many Order By options are available in the related select list:

Order By Item property reflecting name of order by item and number of order by clauses

Simplifying the Region Query

Now that we’ve “refactored” the dynamic query clause selection to be done declaratively using the new Order By Item, we can simplify the Friends region source to be an easier-to-read-and-maintain SQL query instead of the function body returning SQL query. We start by copying the text of the SELECT statement to the clipboard so we’ll be able to easily paste it into the SQL Query property after changing the region source type. Next, we change the region source type to SQL Query. Then, we paste the query saved in the clipboard into the SQL Query property to result in the following situation. Notice that we left out the order by text from the query that was there before because the APEX engine will add that for us at runtime.

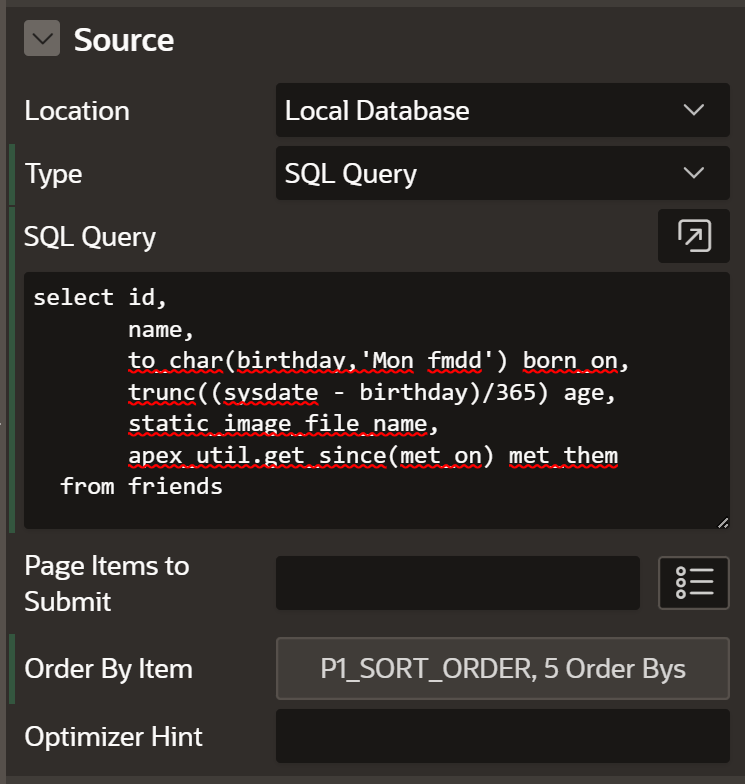

Upgraded cards region with simpler-to-understand SQL query

Trying Out the First Cut

If we run the application it appears to work fine, showing us the cards with our friends’ smiling faces initially sorted by the default NAME column value. However, if we choose one of the other sort orders, we get a runtime error like this:

ORA-00904: "BIRTHDAY": invalid identifier ORA-06512: at "APEX_220100.WWV_FLOW_PAGE", line 2062 ORA-06512: at "APEX_220100.WWV_FLOW_DISP_PAGE_PLUGS", line 1576 ORA-06512: at "APEX_220100.WWV_FLOW_CARD_REGION", line 1099 ORA-06512: at

This error occurs because the ORDER BY clause that the APEX engine adds at runtime based on the value of the region’s Order By Item is applied in an outer query that “wraps” the region’s original SQL query, using it as an inline view. In fact, after choosing to sort by age, the error dialog or APEX debug log shows the query in error. Note that I’ve added some additional comments and removed some query hints for clarity.

select *
from (
  select a.*,row_number() over (order by null) apx$rownum
  from (
    select *
    from (
      select *
      from (
       /* ---vvv--- REGION SQL QUERY ---vvv--- */

       select id,
              to_char(birthday,'Mon fmdd') born_on,
              trunc((sysdate - birthday)/365) age,
              apex_util.get_since(met_on) met_them
       from friends

       /* ---^^^--- REGION SQL QUERY ---^^^--- */
      ) d
    ) i
    /* ---vvv--- ORDER BY ITEM CLAUSE ---vvv--- */

    order by birthday asc

    /* ---^^^--- ORDER BY ITEM CLAUSE ---^^^--- */
  ) a
where apx$rownum <= :p$_max_rows

Adding Columns to the SELECT List of the Region’s Query

To avoid the error, we need to study the ORDER BY clauses in play in the Order By Item and ensure that any column names referenced by those order by clauses are included in the SELECT list of the region. This guarantees that they will “shine through” to the outer, wrapping SQL statement where the dynamic ORDER BY is applied.

In our Friends example app, this means adding the BIRTHDAY and MET_ON date columns into the region’s SQL Query select list so that the query now becomes:

select id,
       to_char(birthday,'Mon fmdd') born_on,
       trunc((sysdate - birthday)/365) age,
       apex_util.get_since(met_on) met_them,
  from friends

After doing this adjustment to the SELECT list, rerunning the application shows that the query works perfectly with all of the configured dynamic sorting options. However, the page appears to be getting refreshed twice each time the end-user changes the sort order. We’ll fix that next.

Avoiding Double Page Refresh

While the query with dynamic order by now executes without an error, the presence of two spinning progress indicators (and the time required to refresh the page) gives the impression that the page is being refreshed twice.

The page refresh shows two progress indicators and the page/region is refreshed twice

This effect is the result of the following two factors:

  1. The original page’s P1_SORT_ORDER page item is configured with a Page Action on Selection property set to Submit Page, so the page re-renders to reflect the new sorting order, and
  2. The APEX 22.1 Order By Page Item feature automatically refreshes the region when the related order by page item’s value is changed.

The solution to the double-refresh issue is restoring the P1_SORT_ORDER page item’s Page Action on Selection property value to the None setting. This avoids its submitting the page since that action is no longer necessary.

Removing the previously configured page submit when the P1_SORT_ORDER item changes value

With this change in place, the dynamic sorting is now using the maximally-declarative approach, we’ve improved the readability and maintainability of our region’s SQL query, and the page refreshes a single time and is looking great.

Updating the Theme to Use New Sort Order Position

APEX 22.1’s updated Universal Theme adds a new Sort Order template layout position designed to contain the region’s components that the end-user uses to configure the region’s sort order. To have our upgraded Friends page use this new layout position, we need to refresh our application’s theme before the Page Designer will show us this new position name.

So, I navigated to Shared Components and clicked the Refresh Theme button at the top of the page.

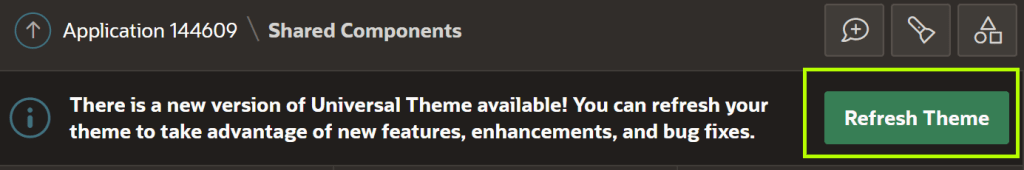

Refreshing the theme to 22.1 to use the new Sort Order layout position

After visiting the User Interface application settings to restore the application’s Redwood Light theme style, returning to edit the page in the Page Designer allows us to now set the P1_SORT_ORDER page item to have the new Sort Order layout position:

Choosing the new Sort Order layout position for the Order By Item P1_SORT_ORDER


With these changes in place, we have upgraded our existing dynamic sorting implementation for a 21.2 cards region to leverage the latest 22.1 declarative region sorting feature. The result is an application that is easier for colleague developers to understand and maintain. It also ensures the existing pages offering dynamic sorting are implemented in the same way that new pages created in 22.1 will be when dynamic sorting is added automatically by the new Create Page wizard. If you care to study the before and after applications, you can download the upgraded 22.1 version of the Friends example app from here.

21.2: Fine-Tuning Initial Render of Tabs & Cards

If you use a Static Content region with the Tabs Container template to present subregions on separate tabs, in APEX 21.2 you might notice during initial page render that you momentarily see the contents of all the tab “pages” before they disappear behind the initially selected tab. Depending on the contents of the tab pages, the result may be more or less noticeable. However, since one of my applications presents multiple tabs of colorful Badge Lists, the “Easter eggs” below compelled me to search for a solution…

Three Badge List regions situated in a Tabs Container all render momentarily during page load

Luckily, my colleagues Tim and John helped me with a combination of simple CSS suggestions that solved the problem. After adding two rules to an application-level CSS file, the undesirable effect vanished.

While the two CSS rules that avoid the flashing tabs could be applied to each page where needed, I prefer a “one-and-done” solution. An application-level CSS file is best for rules that apply to all pages, so I added the two rules in there. Under Shared Components > Static Application Files I created an app.css file with the contents shown below:

App-level app.css file with two rules to suppress flashing of all tab containers’ contents

Next, I clicked on the copy icon next to the #APP_FILES#app#MIN#.css name under Reference to copy that file path to the clipboard so I could paste it into the list of CSS files that my application will load with every page. That configuration is also under the Shared Components settings, on the User Interface Attributes page, in the Cascading Style Sheets section. I pasted the file reference on its own line in the text area as shown below:

List of App-level CSS file URLs that APEX will load with every page

With this app-level CSS file in place, my landing page was looking sharp.

Landing page with Tabs Container of three Badge Lists and a Chart region

Energized that my app’s tab pages were looking great now, I turned my focus next to my application’s Cards regions. I noticed that APEX shows a row of placeholder cards when the page initially draws to help the end-user understand an asynchronous data request is in progress to retrieve the actual card information.

APEX Card regions initially show placeholder cards, then actual cards appear once data loads

This employs a familiar technique that other modern web applications like LinkedIn, Facebook, and YouTube use.

YouTube shows placeholder cards initially, then actual cards appear once data loads

In situations where the card data takes time to retrieve, placeholders are a useful affordance for the end-user. In my particular app, it seemed to add less value since my cards render almost instantly.

I used Chrome Dev tools to explore the structure of the page to see if a similar CSS technique might be able to hide the placeholder cards. After none of my experiments panned out, again my colleague Tim nudged me back onto the happy path with a suggestion. I edited my app.css file to add the one additional rule you see below that delivered the results I was hoping for.

/* Contents of app.css */
 * Suppress tab container contents from flashing
 * during initial page render
.a-Tabs-panel {
	display: none;

.no-anim .t-TabsRegion-items > div {
    display: none;

 * Suppress cards region from rendering initial row
 * of placeholder cards during initial page render
.no-anim .a-CardView-item > div {
    display: none;

These CSS rules use a combination of class selectors ( .someClassName) and the child element selector ( > someElement). Effectively they say:

  • Hide elements with the a-Tabs-panel class
  • Hide div child of parent with classt-TabsRegion-items inside element with class no-anim
  • Hide div child of parent with class a-CardView-item inside element with class no-anim

Keep in mind that these rules only affect the initial display state of the affected elements since APEX automatically makes the relevant elements visible again once they are ready for the end-user to see.

With these three rules in place, the user sees only the selected tab’s Badge List as expected and my quick-loading cards without placeholders. In case you want to try the example application, download it from here. Try commenting out the CSS rules in app.css in the example to see the difference with and without so you can decide what’s best for your own application use cases.

Card region showing Paul Theroux books

Nota Bene

I’ve tested these techniques in APEX 21.2 but need to remind you that the particular structure of how APEX universal theme generates HTML elements in this release is not guaranteed to remain the same across future APEX releases.

Interactive, User-Configurable Card Width #JoelKallmanDay

Create a cards region with interactive card width selector, saving user’s preference across logins.

We miss you, Joel.

Everyone in the Oracle APEX community

Oracle APEX card regions let your users browse and act on a grid of tiles, each representing a row of data. The card region directly taps into your end user’s intuition of browsing their mobile phone’s photo library, especially when the cards feature an image, so it’s a compelling way to present data to users.

The card region’s grid style resizes automatically to the screen space available, but by default end users can’t influence the size of each tile in the grid. Read on to learn how to let your users adjust the card width interactively and remember their choice as a preference across logins. At the end, you’ll find a step-by-step video tutorial and downloadable sample application, but we’ll explore the key ideas behind the technique first.

Overview of Strategy

To implement the feature, you’ll add the following to your page with the card region:

  • A select-list page item showing list of available sizes (e.g. Small, Medium, Large)
    • Having corresponding values of the pixel widths 180px, 220px, 300px
    • Defaulted to the static value for the Medium size (220px)
    • Configured with Maintain Session State setting of Per User (Disk).
  • A dynamic action “trigger” for the select list’s Change event with actions:
    1. Execute JavaScript to update the CSS variable controlling the card size
    2. Execute Server-side Code to save the updated value to the APEX session state

What’s a CSS Variable?

A CSS variable is a custom property whose name is prefixed by a double-hyphen (e.g. --preferred-button-width). It can be associated with any element in a page, either explicitly or implicitly by being associated with a class applied to that element. Any CSS expression can reference the value of a variable by using the syntax var(--variable-name) . The usage can also provide a default value to use in case the variable reference has no value of its own by including a second argument like var(--variable-name, defaultValue) . So, a CSS class named myButton could set the width property to the value of the --preferred-button-width variable (providing a default of 80 pixels) like this:

.myButton {
  width : var(--preferred-button-width,80px);

If the same variable exists on multiple elements in the page, the value of the most specific occurrence is used. To provide a global default value for a variable, you can set a value for it on the special :root pseudo-class. If no more specific element in the page provides a value, then the one from the root is used.

As we’ll see below, the Universal Theme style class that defines the card region’s grid layout uses a CSS variable to control the size of the cards in the grid. So setting the right variable to a user-chosen value on the appropriate scope for your needs is the crux of the solution. So let’s explore which variable to set and consider on what context makes sense to set it.

Which Variable Do We Need to Set?

While a page containing a grid region is displayed, using the Chrome developer tools to inspect one of the cards (and clicking to enable the CSS-grid related style properties) we can observe that the card items grid layout is setup by this CSS class:

.a-CardView-items--grid {

At first glance, it’s admittedly cryptic, but let’s unpack what it says. This style property defines the grid-template-columns layout to be a repeating set of columns that auto-fill the horizontal space available with uniform-sized grid cells. The browser computes the width of each grid cell automatically so it falls in the range between the values passed to the minmax() function. The first argument, that is the minimum width value, is given by the value of the CSS variable named --a-cv-item-width (or a default to 320 pixels if the variable is not defined). The second argument providing the maximum card width is one fractional unit (1fr), which represents the width of one column in the layout taking into account a spacing between grid cells, too. In short, if we assign the user-preferred card width value to the CSS variable --a-cv-item-width then the grid will instantly react to layout the grid with cards having that width (or slightly bigger to make each grid cell uniformly sized).

On What Context Do We Set the CSS Variable?

We have at least two sensible choices for the context on which to set the card size CSS variable:

  1. On the card region itself, after assigning it a static id in the App Builder, or
  2. On the “global” root context

Choice 1 imposes the user-preferred card width on just the region on which it’s assigned, whereas choice 2 sets the user-preferred card width so that all card regions in the application will abide by it.

The code examples that follow assume you’ve created a page item named P3_CARD_SIZE on the page with the card region, and that the values for the P3_CARD_SIZE select list page item are one of 180px for Small, 220px for Medium, and 300px for Large.

JavaScript to Set the CSS Variable on a Region

After configuring a static id on your card region (e.g. BooksCardRegion), your dynamic action on the P3_CARD_SIZE page item’s Change event can use the following line of JavaScript to change the CSS variable --a-cv-item-width to the new value of the P3_CARD_SIZE page item:

JavaScript to Set the CSS Variable Globally

Your dynamic action on the P3_CARD_SIZE page item’s Change event can use the following line of JavaScript to change the CSS variable --a-cv-item-width on the global “root” context to the new value of the P3_CARD_SIZE page item:


Pushing the Interactive Card Size Change Immediately to the Server

The change to the CSS variable is made in the browser when the dynamic action reacts to the user’s change of the select list page item, and immediately takes visual effect for the end user in their browser. However, to immediately force the value change to be saved in the APEX session, add an additional dynamic action step to Execute server-side Code and which specifies the P3_CARD_SIZE as one of the page items to send to the server. Since it doesn’t need to perform any other server-side logic beyond pushing the values, you can simply use the “do nothing” PL/SQL instruction NULL; to enter into the required PL/SQL script property. If the page item’s Maintain Session State setting is configured to “Per Session (Disk)” then the user’s preference will persist for the duration of the session. If instead it’s set to “Per User (Disk)“, the setting will survive across subsequent user logins.

Step by Step Tutorial Video

NOTE: The video illustrates setting the CSS variable on the :root context, while the downloadable example app illustrates setting the variable on the card region. See above for a consideration on which is appropriate for your use case .

Sample Application

You can download an Oracle APEX 21.1 example application (containing a supporting objects installation script for two sample tables PNL_THEROUX_BOOKS and PNL_PUBLISHERS) from here.
