Using a public dataset of New York City high schools, I built a page that lets students or parents filter the list based on various criteria. As they narrow their options, a map region reflects where the remaining schools are located, and a stacked bar chart lets them compare the contenders on a few important metrics. While the map initially centered and zoomed itself to fit the unfiltered set of schools, to give users the sense of “homing in” on their perfect school I wanted to refit the map around the narrowed search results. To reflect the filtered results from the cards region in the map and chart, I used the region data sharing technique from my colleague Carsten’s article Add a Chart to your Faceted Search Page. Then I got a little help from my colleagues Christian Lara and Stefan Dobre to learn how to build my first simple “Center/Zoom Map Around Points” dynamic action plug-in to make it easy to build this feature into any map-based pages I build in the future. You can check out the sample using the link at the end of the article.

Refreshing the Map and Chart

The data source for the map is a query from a pipelined table function I created following Carsten’s technique. It retrieves the high school data using the same filters currently applied to the schools region in the page:

select school_name, latitude, longitude
from eba_demo_nyc_highschool_data(
       p_page_id => :APP_PAGE_ID,
       p_region_static_id => 'schools')

Similarly, the chart’s datasource is a query that selects a few different columns from the same pipelined table function:

select school_name, graduation_rate,
       attendance_rate, college_career_rate
from eba_demo_nyc_highschool_data(
       p_page_id => :APP_PAGE_ID,
       p_region_static_id => 'schools')

When the cards region changes due to the user’s applying new filters, we want to refresh the map and chart regions. The lesson I learned while getting this to work was that rather than using the “After Refresh” event on the cards region, I needed to instead use that region’s “Page Change [Cards]” event to trigger the dynamic action refresh, using two dynamic action steps of type “Refresh”.

Centering & Zooming the Map After Refresh

Whenever the map region gets refreshed, my goal was to have it refocus the user’s attention by using the new set of filtered data points to center and zoom the map appropriately. After hunting for a built-in APEX map JavaScript API, or a built-in dynamic action, I realized the solution would take a bit more research. My teammate Christian Lara pointed me at the MapLibre Fit a map to a bounding box example, and gave me this snippet of JavaScript below to consider.

The first statement accesses the map’s (post-refresh) bounding box from its mapData.map.bbox member and defines a new bounds array that contains the two points representing that rectangle. The second line gets the MapLibre map object from the APEX map region on my page, and calls its fitBounds() method to perform the centering and zooming to the new dimensions. It uses 30 pixels of padding so points near the edge of the box stay visible.

// Define the bounds using refreshed map bounding box coordinates
let bbox = apex.region("map").mapData.map.bbox,
    bounds = [
        [ bbox[0], bbox[1] ],
        [ bbox[2], bbox[3] ]
    ];
// Fit the map to the new bounds
apex.region("map").getMapObject().fitBounds(bounds,{padding: 30});

Creating a Reusable Dynamic Action Plug-in

With the code above in a dynamic action step triggered by the “After Refresh” event on the map region, the functionality I desired was working, but I wanted to learn how to encapsulate that little bit of code into a reusable dynamic action plug-in. I first watched Stefan Dobre’s The Ultimate Guide to APEX Plug-ins video from the APEX@Home 2020 conference, and then created a new dynamic action plugin named “Center & Zoom Map Around Points” in my application. Following best practice, I put the JavaScript code in a with a centerZoomMap.js file, and referenced its qualified name in the File URLs to Load section using the syntax PLUGIN_FILES#centerZoomMap#MIN#.js

I instinctively knew that to be reusable, the name of the map region’s static id would have to be a function parameter, so my first attempt at writing the contents of this centerZoomMap.js file looked like this:

// centerZoomMap.js -- First Attempt
function centerZoomMap(staticId) {
  // Define bounds using refreshed map bounding box coordinates
  let bbox = apex.region(staticId).mapData.map.bbox,
    bounds = [
        [ bbox[0], bbox[1] ],
        [ bbox[2], bbox[3] ]
    ];
  // Fit the map to the new bounds
  apex.region(staticId).getMapObject().fitBounds(bounds, {padding: 30});
}

After that, I defined a custom attribute in the plug-in named “Map Region Static Id” as attribute slot number one. However, I admit to getting a bit confused on how to pass the value of the plug in’s dynamic attribute to the JavaScript function. After asking my colleague Stefan Dobre for a tip, he used the occasion as a teachable moment to show me about the two standard plug-in attributes:

• For Region
• Affected Element Required

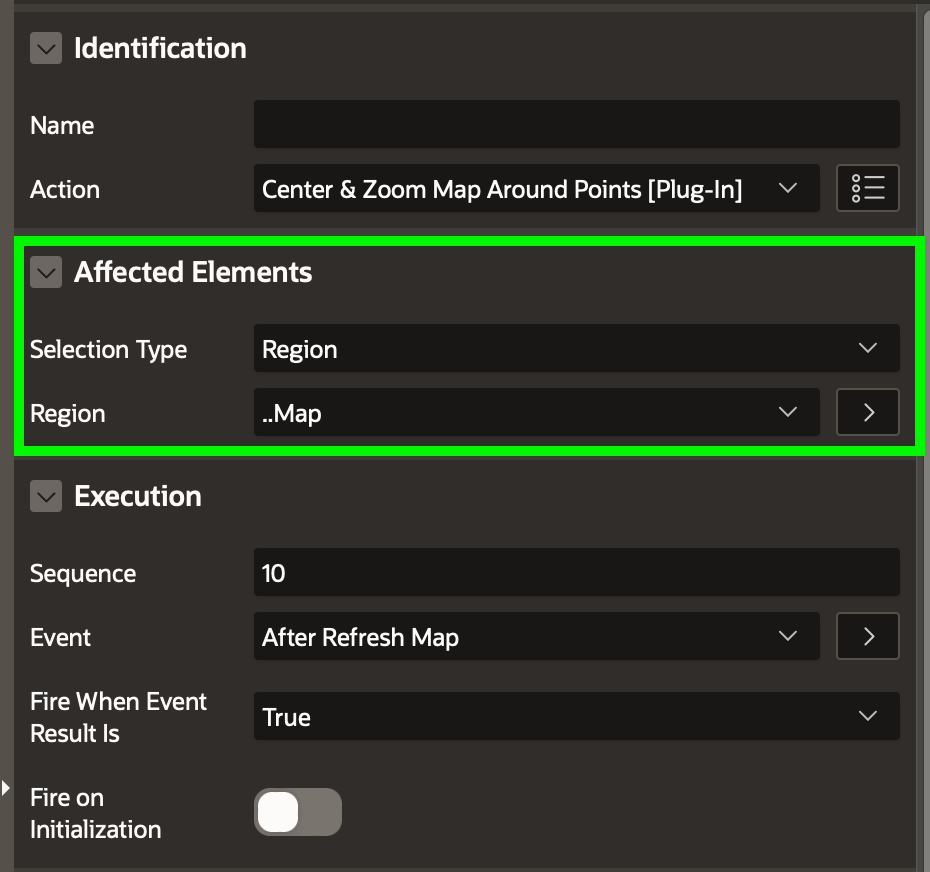

By leveraging these standard plug-in attributes, the developer using the plug-in gets a more native-feeling experience of picking the region to associate the plug-in with. It also allowed me to remove the custom attribute I had created in the plug in. The developer now configures the map she wants to center and zoom by simply picking the map region in the Affected Element section as shown below:

Stefan also took the opportunity to teach me a best practice of defining the centerZoomMap function as a property on the window to make its scope more clear when reading the code. So the final contents of centerZoomMap.js after consulting with Stefan looked like this:

// centerZoomMap.js - Final version
window.centerZoomMap = function() {
    // Ensure dev-configured affected element has a static id
    const id = this.affectedElements.attr( "id" );
    if ( !id ) {
        throw new Error( "Affected Region must have an ID" );
    }
    // Use static id to ensure dev chose a map region
    const region = apex.region( id );
    if( !region || region.type !== "SpatialMap" ) {
        throw new Error( "Affected Region must be a Map" );
    }
    // Define bounds using refreshed map bounding box coordinates
    let bbox = region.mapData.map.bbox,
        bounds = [
            [bbox[0], bbox[1]],
            [bbox[2], bbox[3]]
        ];
    // Fit the map to the new bounds
    region.getMapObject().fitBounds(bounds, {padding: 30});
};

The last piece of the simple dynamic action plug-in was writing the render function using the appropriate function specification that I copied from the online help to use as a guide. The only job it had to do was tell the APEX engine the name of my JavaScript function to invoke when the dynamic action gets used at runtime:

function render (
    p_dynamic_action in apex_plugin.t_dynamic_action,
    p_plugin         in apex_plugin.t_plugin )
    return apex_plugin.t_dynamic_action_render_result is
    l_result apex_plugin.t_dynamic_action_render_result;
begin
    l_result.javascript_function := 'centerZoomMap';
    return l_result;
end;

Using the New Plugin in the Page

With the plug-in now defined, I went back to the Page Designer and removed the dynamic action step that was directly calling Christian’s snippet of JavaScript and replaced it by using the new “Center & Zoom Map Around Points” plugin we built. After picking the “Map” region from the Affected Elements section, it was ready to go.

Giving the Sample a Spin

To try out the sample, you can download the APEX 22.2 application from here. It gives the end user a nice school-searching experience like what you see in the screen recording below. Thanks again to Christian and Stefan for sharing their wisdom in getting to this end result.
